PIN FLEX COUPLINGS
PIN FLEX COUPLINGS
|

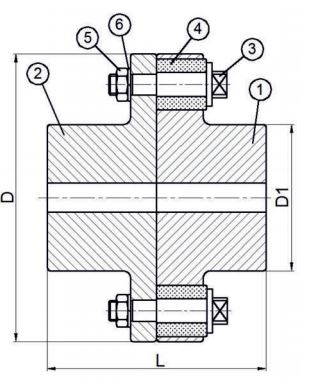

NO |
NAME OF PART |
|
1 |
RUBBER HOLDER STEEL COUPLING - GS40 |
|
2 |
PIN HOLDER STEEL COUPLING - GS40 |
|
3 |
SCREW GRADUAL PIN - GS37 |
|
4 |
RUBBER SIGN SHORE A 70+5 |
|
5 |
NUT |
|
6 |
SPRING STAMP |
|
TYPE |
D |
D1 |
L |
NUMBER OF PINS ON THE |
Max.Tork |
WEIGHT Kg. |
|
PFK 150 |
150 |
72 |
136 |
8 |
681 |
15 |
|
PFK 155 |
155 |
70 |
140 |
8 |
681 |
18 |
|
PFK 170 |
170 |
80 |
140 |
8 |
773 |
20 |
|
PFK 197 |
197 |
100 |
152 |
10 |
1199 |
25 |
|
PFK 245 |
245 |
120 |
242 |
8 |
2765 |
45 |
|
PFK 290 |
290 |
150 |
242 |
10 |
4321 |
62 |
|
PFK 350 |
350 |
220 |
280 |
12 |
6567 |
110 |
|
PFK 450 |
450 |
240 |
340 |
12 |
13700 |
185 |
|
PFK 490 |
490 |
300 |
360 |
14 |
19669 |
230 |
|
PFK 550 |
550 |
300 |
400 |
16 |
25290 |
265 |
|
PFK 650 |
650 |
400 |
800 |
16 |
60537 |
- |
|
PFK 680 |
680 |
400 |
800 |
16 |
54622 |
- |
Note : Non-sized pinflex coupling can be manufactured.
