POOL COVER and MUD SEALING GASKETS
POOL COVER and MUD SEALING GASKETS

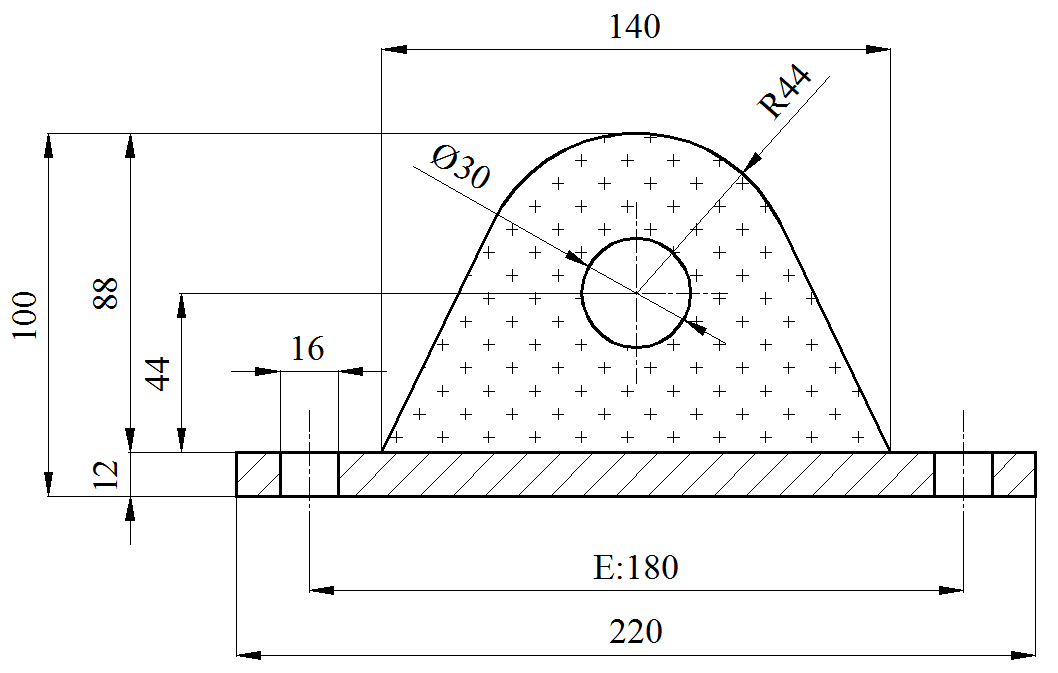

SPECIAL LEAK-PROOF GASKET DIMENSIONS
|
TİP |
A |
B |
a |
b |
C |
D |
T |
Weight ± |
|
D 100x150xØ40 |
100 | 150 | Ø40 | Ø40 | 1480 | 70 | 8 | 27 |
|
D 200x200xØ75 |
200 |
200 |
Ø75 |
Ø75 |
1500 |
76 | 14 |
|
MUD HOLD SEALING GASKET
Product dimensions: 130 x 152 x 1500 mm

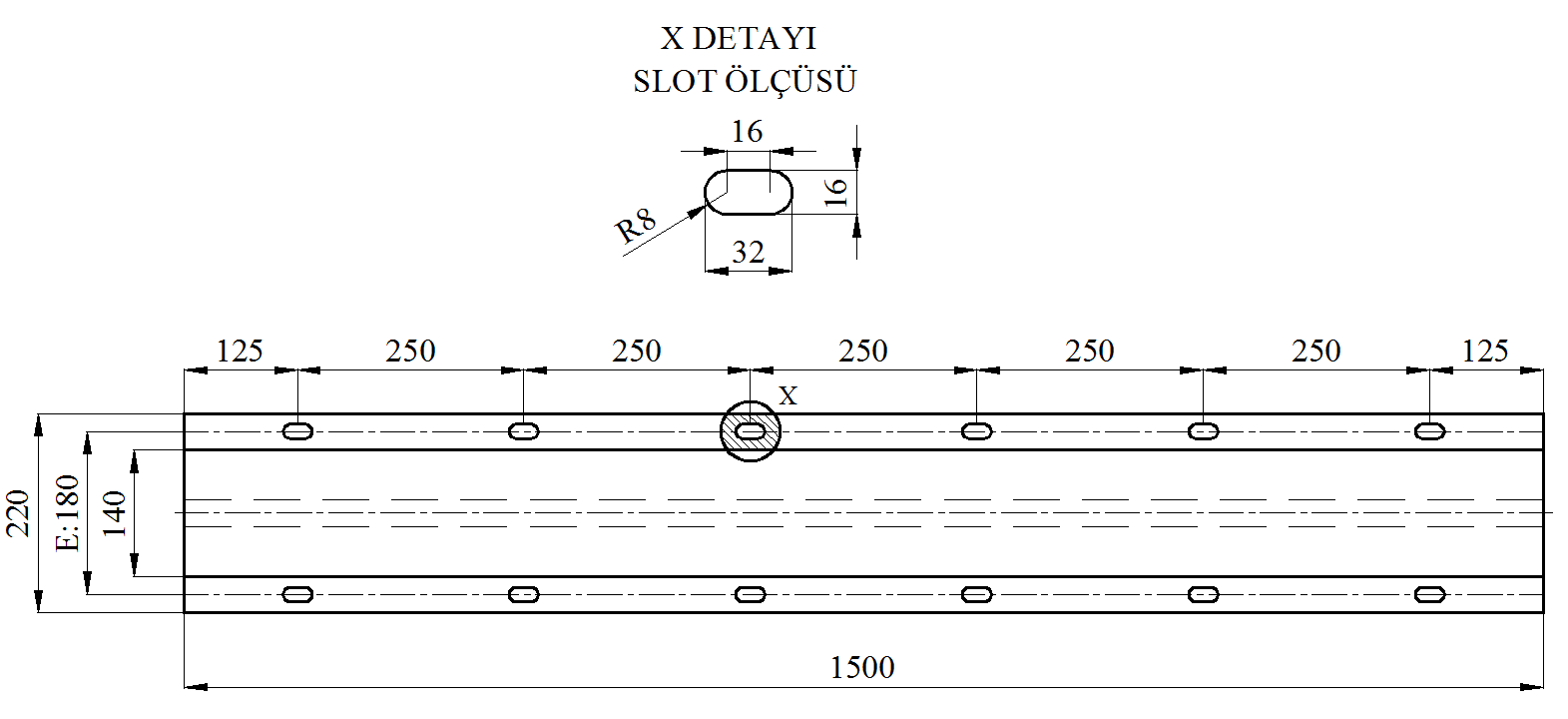

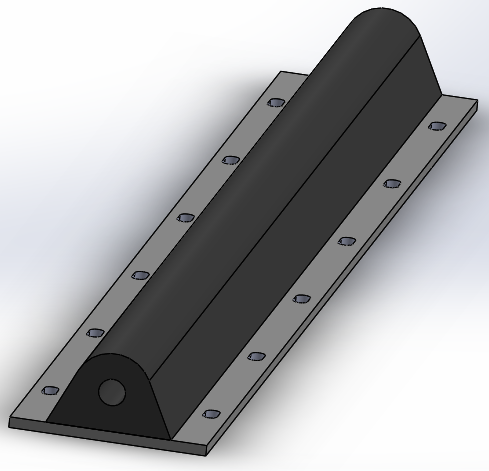

POOL COVER SEALING GASKET, FLAT MODEL
Product dimensions: 110 x 240 x 1500 mm

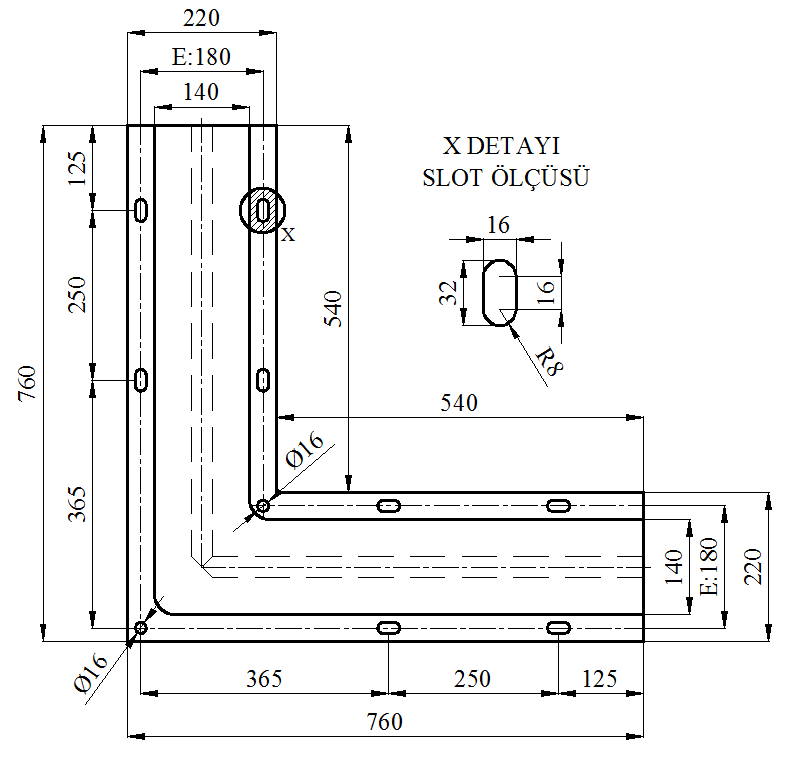

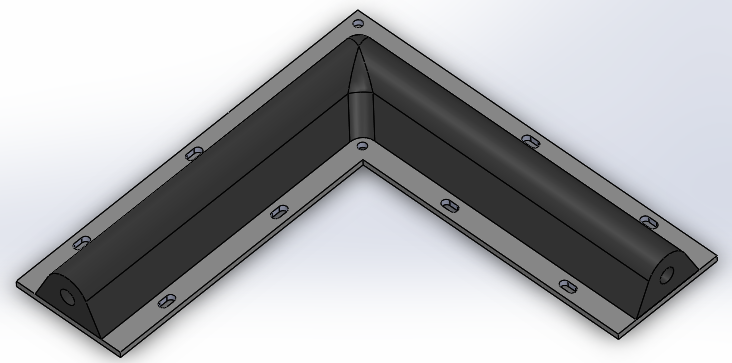

POOL COVER SEALING GASKET, CORNER MODEL
Product dimensions: 110 x 240 x 530 mm
POOL COVER SEALING GASKET, CONICAL MODEL
POOL COVER SEALING GASKET, CONICAL OR FLAT MODEL
POOL COVER SEALING GASKET, CONICAL CORNER MODEL
