ARCH TYPE FENDERS

FENDER MOUNT IMAGES

NOTE : Our fenders are manufactured according to the TSE K46 standards and Loyds certificates are available.

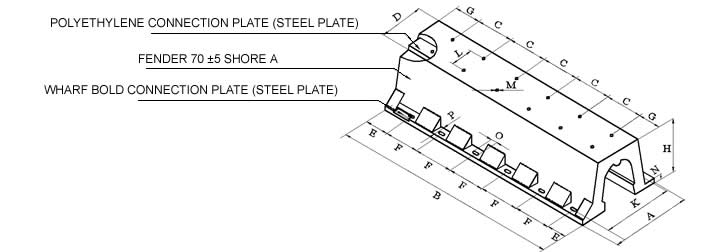

ARCH TYPE FENDER (Mono Blok TYPES)

TYPE	A	B	C	D	E	F	G	H	K	L	M	N	O	P	Weight (Kg)
450x1000xH255	450	1000	250	245	125	250	125	255	400	120	M16	34	45	20	70
300x1000xH165	300	1000	250	165	125	250	125	165	250	80	M12	24	45	14	34
200x1000xH120	200	1000	250	110	125	250	125	120	175	60	M12	20	36	12	19
150x1000xH90	150	1000	250	82	125	250	125	90	125	40	M10	14	25	10	10

TYPE	A	B	C	D	E	F	G	H	K	L	M	N	O	P	Weight (Kg)
450x1500xH255	450	1500	250	245	125	250	125	255	400	120	M16	34	45	20	117
300x1500XH165	300	1500	250	165	125	250	125	165	250	80	M12	24	45	20	45
200x1500XH120	200	1500	250	110	125	250	125	120	175	60	M12	20	36	16	25
150x1500xH90	150	1500	250	82	125	250	125	90	125	40	M10	14	25	10	14

NOTE: The dimension H may be altered on location by installing polyethylene plates or stell construction and may be used without using slider shield.

You may contact our company for more information about the deformations tests, other analyses, design and other technical data

K and F measurements with a Tolerance of ± 10 mm.

Moreover, the shield plate may not be applied as desired (like the smaller models)

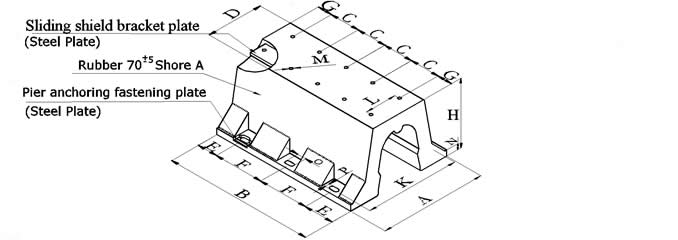

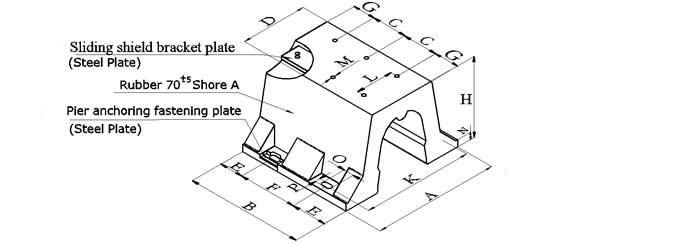

TİP	A	B	C	D	E	F	G	H	K	L	M	N	O	P	Ağırlık (Kg)
1150x1000xH800	1150	1000	350	610	250	500	150	800	1000	320	M30	65	90	45	507
1080x1000xH660	1080	1000	350	580	250	500	150	660	950	320	M30	60	90	45	400
850x1000xH500	850	1000	350	460	250	500	150	500	750	280	M24	50	64	32	268
800x1000xH400	800	1000	350	370	250	500	150	400	650	225	M24	40	64	32	207
600x1000xH330	600	1000	350	330	250	500	150	330	500	160	M16	38	50	25	115

TİP	A	B	C	D	E	F	G	H	K	L	M	N	O	P	Ağırlık (Kg)
1150x1500xH800	1150	1500	300	610	250	500	150	800	1000	320	M30	65	90	45	810
1080x1500xH660	1080	1500	300	580	250	500	150	660	950	320	M30	60	90	45	651
850x1500xH500	850	1500	300	460	250	500	150	500	750	280	M24	50	64	32	402
800x1500xH400	800	1500	300	370	250	500	150	400	650	225	M24	40	64	32	310
600x1500xH330	600	1500	300	330	250	500	150	330	500	160	M16	38	50	25	170

NOTE : The dimension H may be altered on location by installing polyethylene plates or steel construction and may be used withour using slider shield.

You may contact our company for more information about the deformations tests, other analyses, design and other technical data

K and F measurements with a tolerance of ± 20 mm.

NOTE : The slider shields on the fender may be installed according to those drawings. Our fenders may be installed in single format or attached to each other in order to increase the length.

1080x1500 ARCH FENDER DEFORMATION TESTS
