SCUPPER PLUGS - PATCH CAP TIRES

SCUPPER PLUG

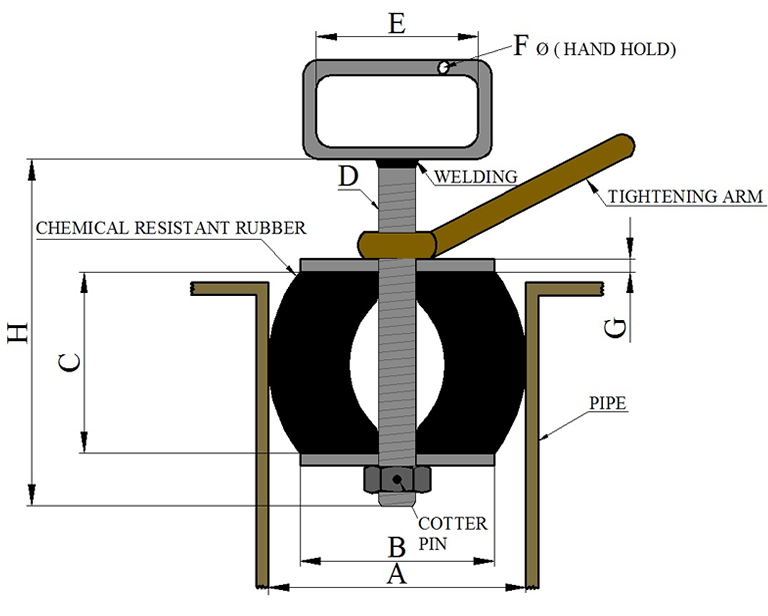

The holes situated around the decks and tanks have to be closed in the tankers carrying chemicals during the filling operations. Therefore, this can be achieved easily with a system manufactured by us. The internl diameter of the pipe (A) flexes and gets larger by 5 to 50 mm due to the flexibility of the rubber. Thus, the rubber adapts its shape to the oval of irregular shapes caused by welding and ensures a good seal.

NOTE : Scupper rubber is resistant to oil, diesel and chemicals. The tightening mechanical systems are made of chrome and bronze and are resistant to sea water. In case the syphilis tire is deformed or damaged over time, you can only obtain the scupper rubber from our company in terms of economy.

TYPE	A	B	C	D	E	F	G	H	WEIGHT/ KG
Type 30	Ø 30	Ø 25	30	M10	80	Ø10	15	140	0,34
Type 35	Ø 35	Ø 30	30	M10	80	Ø10	15	140	0,34
Type 40	Ø 40	Ø 35	40	M10	80	Ø10	4	140	0,44
Type 45	Ø 45	Ø 35	40	M10	80	Ø10	4	140	0,45
Type 50	Ø 50	Ø 40	44	M10	80	Ø10	4	140	0,45
Type 55	Ø 55	Ø 43	55	M12	80	Ø10	4	140	0,55
Type 60	Ø 60	Ø 43	55	M12	80	Ø10	4	140	0,6
Type 65	Ø 65	Ø 43	55	M12	80	Ø10	4	140	0,58
Type 70	Ø 70	Ø 52	55	M12	80	Ø10	4	140	0,74
Type 75	Ø 75	Ø 52	75	M12	80	Ø10	4	140	0,77
Type 80	Ø 80	Ø 63	55	M16	80	Ø12	5	165	1,16
Type 85	Ø 85	Ø 63	70	M16	80	Ø12	5	165	1,18
Type 90	Ø 90	Ø 63	70	M16	80	Ø12	5	165	1,21
Type 95	Ø 95	Ø 76	70	M16	80	Ø12	5	165	1,4
Type 100	Ø 100	Ø 76	70	M16	80	Ø12	5	165	1,43
Type 105	Ø 105	Ø 76	70	M16	80	Ø12	5	165	1,5
Type 110	Ø 110	Ø 76	75	M16	80	Ø12	5	165	1,56
Type 115	Ø 115	Ø 76	82	M16	80	Ø12	5	165	1,67
Type 120	Ø 120	Ø 76	82	M16	80	Ø12	5	165	1,77
Type 125	Ø 125	Ø 100	82	M20	80	Ø12	6	195	2,23
Type 130*	Ø 130	Ø 100	82	M20	80	Ø12	6	195	2,74
Type 135	Ø 135	Ø100	82	M20	80	Ø12	6	195	2,46
Type 140*	Ø 140	Ø 108	90	M20	80	Ø12	8	195	2,94
Type 145	Ø 145	Ø 108	90	M20	80	Ø12	8	195	2,97
Type 150	Ø 150	Ø 128	90	M20	80	Ø12	8	195	4,25
Tip 155*	Ø 155	Ø 128	95	M20	80	Ø12	8	195	4,31
Tip 160	Ø 160	Ø 137	95	M20	80	Ø12	8	195	4,31
Tip 165*	Ø 165	Ø 137	95	M20	80	Ø12	8	195	4,31
Tip 170 - 185	Ø 170 - 185	Ø 150	95	M20	80	Ø12	8	195	4,48
Tip 185 - 200	Ø 185 - 200	Ø 165	100	M20	80	Ø12	10	195	4,82
Tip 200 - 225	Ø 200 - 225	Ø 175	100	M20	80	Ø12	10	195	5,12
Tip 225 - 250	Ø 225 - 250	Ø 196	105	M20	80	Ø12	10	195	6,56
Tip 250 - 300	Ø 250 - 300	Ø 238	130	M20	80	Ø12	8	250	10,92
Tip 300 - 350	Ø 300 - 350	Ø 300	140	M24	80	Ø12	8	250	16
Tip 350 - 400	Ø 350 - 400	Ø 340	150	M24	80	Ø12	10	250	25
Tip 400 - 450	Ø 400 - 450	Ø 390	165	M24	80	Ø12	10	250	28
Tip 450 - 500	Ø 450 - 500	Ø 440	165	M24	80	Ø12	10	250	33

PATCH CAP TIRES

Patch hat rubber ; It is a wound closure material made of specially prepared hardness (shore A) rubber, against minor hull damages that may occur on ships and in order to ensure watertightness, and the skirt parts are reinforced.

Usage places ; The patch cap can be used as a wound closure material used to close the holes that may occur on the sides of the ships in emergency situations or to prevent the water from passing from one side to the other in the concrete holes.

NOTE : Before closing the ship's side or other wounds, the rope should be adjusted and cut as far as the tying distance from the hole in the handle to the nearest place.

Since there is water inflow from the outside to the inside of the ships, the patch cap rubber is folded and thrown out of the hole and left, the rope at the patch cap rubber handle is tied by stretching it from the nearest suitable place inside, so that the patch cap rubber closes the wound and the force coming from the outside pressures the tire, the hole closes the hole well under pressure and makes a sealing operation so that the water intake process is stopped.

Pressure max. It is 1-2 Bar, we can make special production for greater pressure of kg/cm² or in different diameters.

In the table below, the usage code is given according to the desired diameter.

MAXIMUM AND MINIMUM HOLE CLOSE DIMENSIONS OF USABLE PATCH HAT RUBBER

A	B	C	D	E	F	G	H	K	WEIGHT - WT
TYPE : Ø200 mm	Ø175 - ( 7" )	Ø76 - ( 3" )	Ø16	21	90	6	20	15	0,450
TYPE : Ø300 mm	Ø254 - ( 10" )	Ø90 - ( 3 1/2" )	Ø16	27	118	6	20	20	1
TYPE : Ø400 mm	Ø355 - ( 14" )	Ø100 - ( 4" )	Ø16	30	144	10	20	20	2
TYPE : Ø500 mm	Ø457 - ( 18" )	Ø127 - ( 5" )	Ø16	33	170	13	20	20	4
TYPE : Ø600 mm	Ø558 - ( 22" )	Ø150 - ( 6" )	Ø16	35	196	15	20	20	7
TYPE : Ø800 mm	Ø760 - ( 30" )	Ø200 - ( 8" )	Ø16	38	248	18	20	20	13
