ER - CELL-TYPE FENDER
This type fenders we produce may also be described as cell-type or battery-type. The rubber side between two flanges and the section that touches the hull under pressure try to absorb the applied forces by inflating the cell section. Because of the tubular shape of the fender, this form intervenes with the circular forces applied and during the left, right, up and down movements of the vessel the polyethylene (HDPE) shifts,thus absorbing the forces in four positions. In order to further strengthen this system, fixing the HDPE shield plate in two places with chains proves useful. The ER-CELL fenders thus take the forces more softly as compared to the other fender types.
Please consult our company for the reaction and performance values since they may change according to the hardness of the rubber.

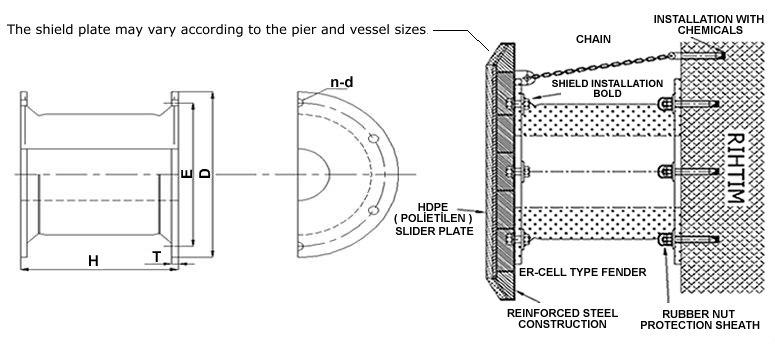

ER - CELL TYPE FENDER DIMENSIONS
|
TYPE |
H | T | E | D | n - d | Mounting Bold | Weight (KG ±) |
|
ER - CELL 500 |
500 - 20" | 30 | 550 | 650 | 4 - 35 | M 30 - 1 1/8" | 120 |
|
ER - CELL 635 |
635 - 25" | 35 | 700 | 850 | 4 - 38 | M 33 - 1 1/4" | 235 |
|
ER - CELL 800 |
800 - 32" | 40 | 900 | 1050 | 6 - 40 | M 36 - 1 3/8" | 450 - 500 |
|
ER - CELL 1000 |
1000 - 40" | 40 | 1100 | 1300 | 6 - 45 | M 39 - 1 1/2" | 830 |
|
ER - CELL 1150 |
1150 - 45" | 50 | 1300 | 1500 | 6 - 50 | M 42 - 1 5/8" | 1235 |
|
ER - CELL 1250 |
1250 - 50" | 50 | 1450 | 1650 | 6 - 50 | M 42 - 1 5/8" | 1725 |
|
ER - CELL 1450 |
1450 - 57" | 50 | 1650 | 1850 | 6 - 60 | M 45 - 1 3/4" | 2312 |
|
ER - CELL 1600 |
1600 - 63" | 55 | 1800 | 2000 | 8 - 60 | M 48 - 1 7/8" | 3050 |
|
*ER - CELL 1700 |
1700 - 67" | 60 | 1900 | 2100 | 8 - 72 | M 56 - 2 1/4" | 3940 |
|
*ER - CELL 2000 |
2000 - 79" | 60 | 2000 | 2200 | 8 - 72 | M 64 - 2 1/2" | 5250 |
NOT: Our fenders are manufactured according to the TSE K46 standards and Loyds certificates are available.
( * ) Research and Development and is under construction.
ER-CELL 1250 TYPE FENDER DEFORMATION TESTS
